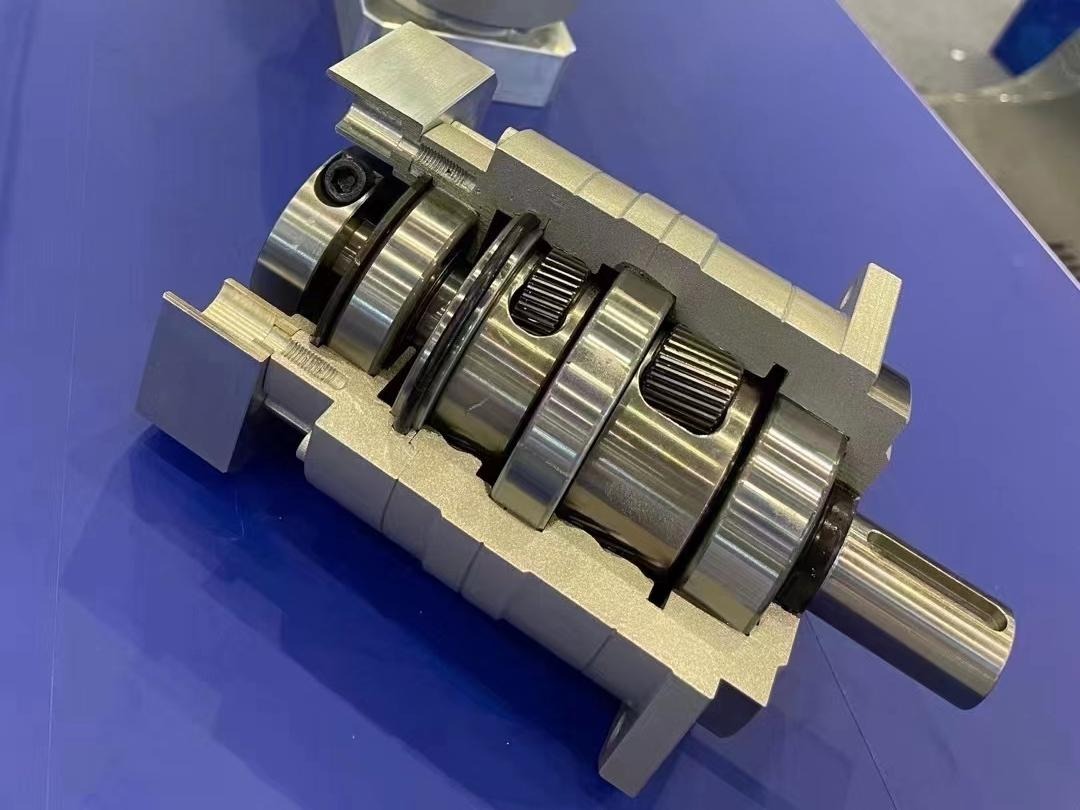

Planetary Gearbox Reducer How it's Work?

Core Components

• Sun Gear: Central gear that connects the input shaft (driven by a motor).
• Planet Gears: Multiple small gears (usually 3–6) that revolve around the sun gear and mesh with it.
• Planet Carrier: Holds the planet gears and connects the output shaft (delivers the final torque/speed).
• Ring Gear: Fixed or rotating outer gear with internal teeth that mesh with the planet gears.

Working Mechanism

1. Power Input: The sun gear rotates when driven by the motor (input power).
2. Planet Gear Motion: The sun gear’s rotation drives the planet gears to both spin on their own axes (rotation) and revolve around the sun gear (revolution).
3. Torque/Speed Adjustment: The ring gear’s state (fixed or rotating) determines the output:
   • If the ring gear is fixed, the planet carrier’s speed is slower than the sun gear, but torque is amplified (most common for speed reduction).
   • If the ring gear rotates, the output speed/torque changes based on its direction and speed (enables variable ratios).
4. Power Output: The planet carrier transfers the combined motion of the planet gears to the output shaft, delivering adjusted torque and speed.

Key Advantages

• High Torque Density: Multiple planet gears share the load, allowing compact size with high torque capacity.
• Smooth Operation: Even load distribution across planet gears reduces vibration and noise.
• Precise Transmission: Gear meshing has minimal backlash, suitable for precision applications (e.g., robots, CNC machines).
