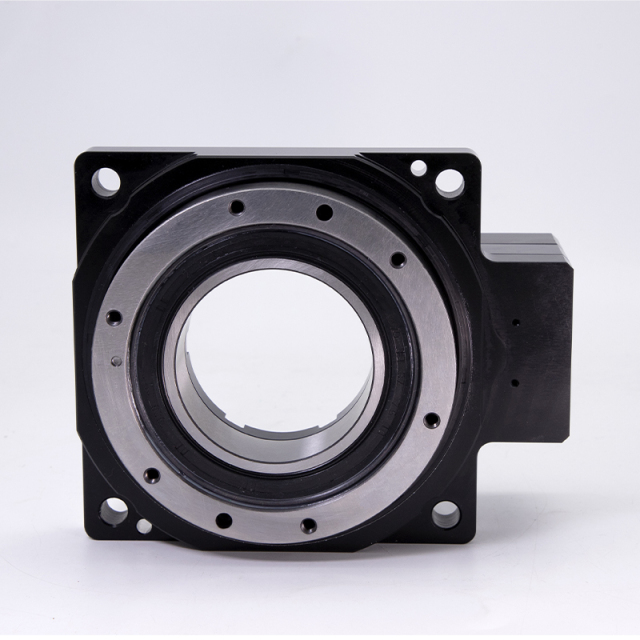

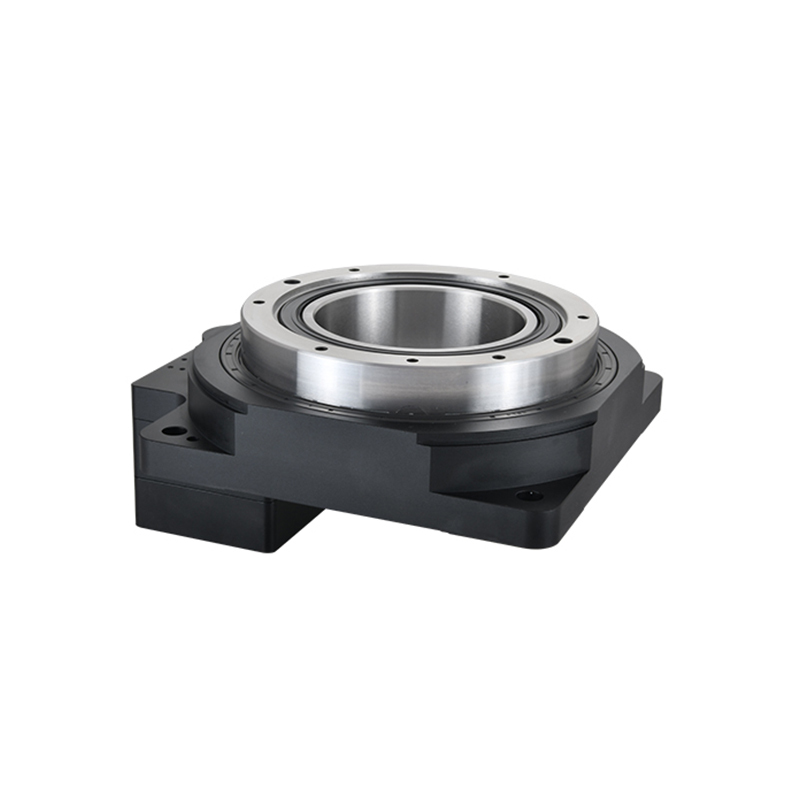

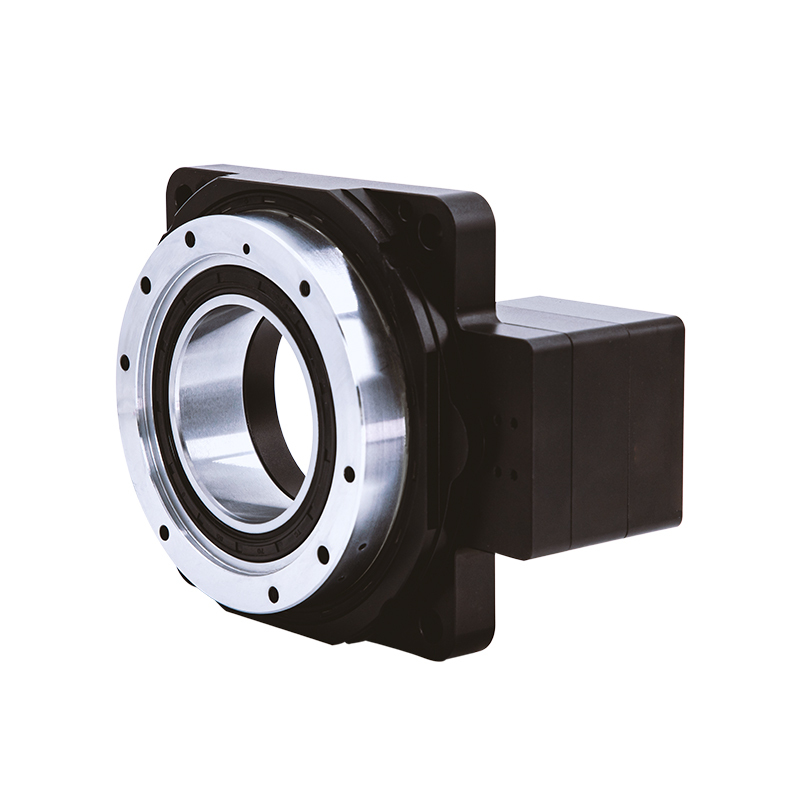

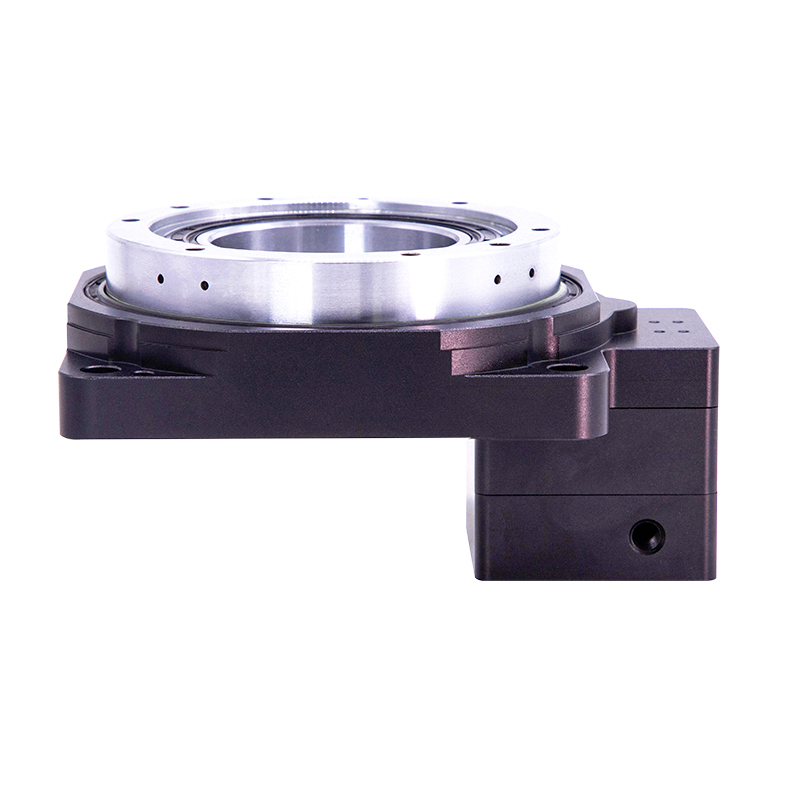

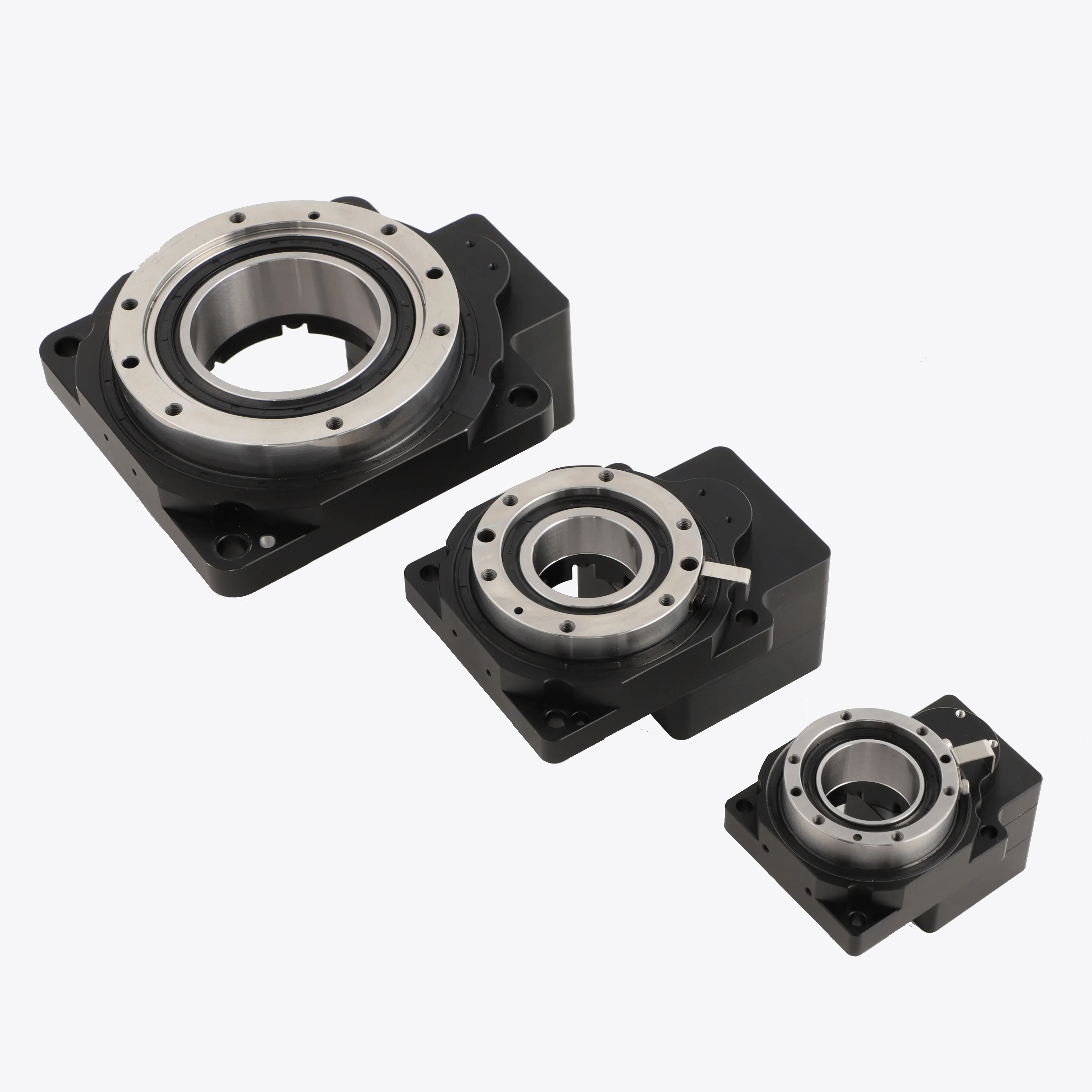

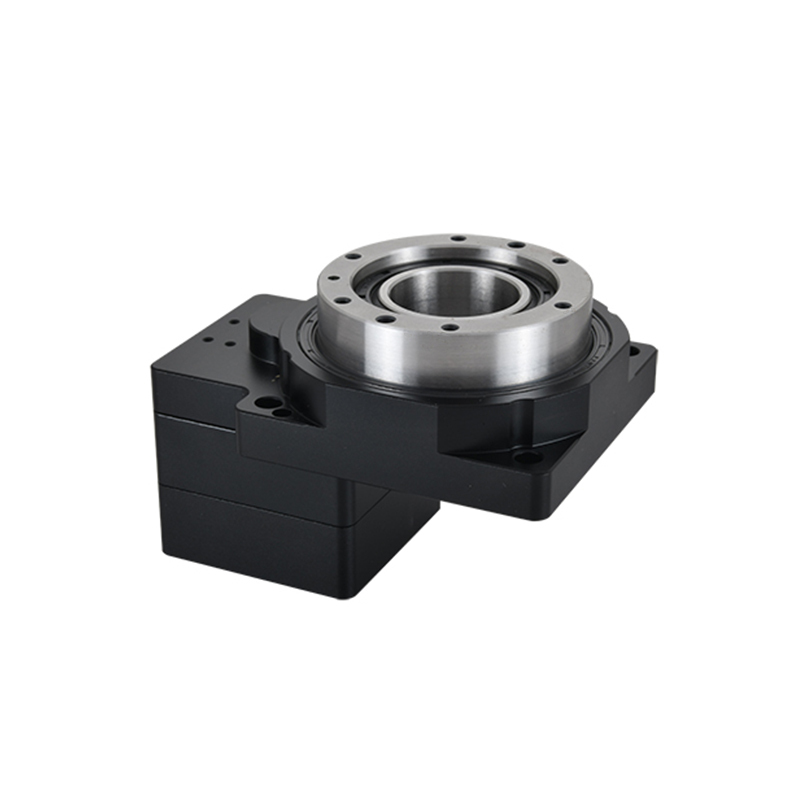

Hollow Shaft Rotary Table Servo Rotary Gearbox DG Actuator Rotating Platform

Name: Hollow Shaft Rotary Table Servo Rotary Gearbox DG Actuator Rotating Platform
Brand: SnooFu
SKU: 1601483972506
Price: 225.00 USD
Availability: InStock
Rating: 5 (1 reviews)

No.1601483972506

360° Flexible Maneuverability：Enables unrestricted aerial rotation to cover multi-angle operational needs, breaking spatial limitations of fixed platforms.
Stable Heavy-Load Performance：Integrated reducers deliver optimized torque and speed reduction, ensuring smooth, vibration-free rotation even under high payloads.
High Rotational Precision：Low backlash and high positional accuracy support precise angle adjustment, meeting strict precision requirements for aerial operations.
Space-Saving Integration：Compact reducer design combines seamlessly with the platform, minimizing overall size while retaining full rotational capability.
Enhanced Operational Safety：Reliable reducer transmission prevents sudden speed drifts or fluctuations, reducing risks during aerial rotation tasks.
Durable & Low-Maintenance：Robust gear structures resist wear from continuous rotation, ensuring long-term stable operation with minimal upkeep.

Model Number:

Standard Model

Depend On Motor

Rated Power:

100w-1000w

GET A QUOTE

Description

Key attributes

Gearing Arrangement

Planetary

Input Speed

2000rpm

Output Speed

200rpm

Output Torque

90N.m

Applicable Industries

Manufacturing Plant, Food & Beverage Factory

Gear Type

Harmonic

Maximum Input Horsepower

10HP

Mounting Orientation

flange mounted

Ratio

10:1

Weight (KG)

9 KG

Brand Name

SNOOFU

Place of Origin

Guangdong, China

Customized support

OEM, ODM

Output Shaft Type

flanged shaft

Warranty

2 years

Drive ratio

Rated input speed

2000rpm

Max.radial force

8400N

life

20000h

The protection grades

IP50

Retoting accuracy

≤1± 0.5 arc-min

Usage temperature

-25°~90°

Design load bearing

150kg

Application

Textile, Machine, CNC, AGV, Robotic Industry

Applicable Industries

Manufacturing Plant, Machinery Repair Shops

Packaging and delivery

Selling Units

Single item

Single package size

42X32X30 cm

Single gross weight

15.000 kg

Show More Product Descriptions From The Supplier

360° Flexible Maneuverability：Enables unrestricted aerial rotation to cover multi-angle operational needs, breaking spatial limitations of fixed platforms.
Stable Heavy-Load Performance：Integrated reducers deliver optimized torque and speed reduction, ensuring smooth, vibration-free rotation even under high payloads.
High Rotational Precision：Low backlash and high positional accuracy support precise angle adjustment, meeting strict precision requirements for aerial operations.
Space-Saving Integration：Compact reducer design combines seamlessly with the platform, minimizing overall size while retaining full rotational capability.
Enhanced Operational Safety：Reliable reducer transmission prevents sudden speed drifts or fluctuations, reducing risks during aerial rotation tasks.
Durable & Low-Maintenance：Robust gear structures resist wear from continuous rotation, ensuring long-term stable operation with minimal upkeep.

Company Introduction

Suzhou Snoofu Transmission Co., LTD is a scientific and technological enterprise specializing in the production of various precision reducers. The factory is located in Suzhou, China.

We focus on the industrial automation field, pursues the leading transmission technology, and provides high, precise and sharp precision gear structure reducer products.

The main prodcuts is high precision planetary gearbox, planetary reducers,hollow rotating platform, gear reducers, RV reducers, harmonic reducers,high precision right angle gearboxes,etc.

It has the characteristics of high precision, strong rigidity, low noise, long service life and maintenance-free.

All the products are widely used in different fields such as automation industry, industrial robot, aerospace, metallurgy and mining, light industry of beer, beverage and tobacco, environmental engineering, logistics, plastic machinery, lifting and transport, parking, automobile manufacturing, textile, food, ceramics and so on.

FAQ

1. Our products?
The main prodcuts is high precision planetary gearbox, planetary reducers,hollow rotating platform, gear reducers, RV reducers, harmonic reducers,high precision right angle gearboxes,etc.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3. How to choose the suitable planetary gearbox?
First of all,we need you to be able to provide relevant parameters. If you have a motor drawing,it will let us recommend a suitable gearbox for you faster. If not,we hope you can provide the following motor parameters:output speed,output torque,voltage,current,ip,noise,operating conditions,motor size and power,etc

4. Why should you buy from us not from other suppliers?
Reducers are our main business. We can offer better services and reasonable prices. Meanwhile, we have many years of production experience and a quality management system.

5. What services can we provide?
Avaliable Delivery Terms:Air freight, Sea freight, Railway, Express
Accepted Payment Currency:USD,EUR,HKD,GBP,CNY;
Accepted Payment Type: T/T,PayPal,Western Union;
Language Spoken:English,Chinese;

6. What's your lead time?
For the standard model, we need 7-10 days.
For customized models, ouesamples will need 7-15 days.
we are very flexible on the lead time, it will depend on the specific orders

AFTER SALES SERVICE

1. When customers request spare parts after purchasing a product, actively arrange and provide them.

2. If quality issues arise after a product is delivered, obtain detailed information about the specific situation and customer requirements, promptly contact the quality inspection and production departments, and provide a response within 24 hours.

3. Carefully register and promptly handle all customer correspondence and calls. Record and archive the details of the resolution.

4. Strictly adhere to the standards specified in the quality guidelines.

5. Strengthen communication with customers.

6. Feedback Mechanism

a) Assign dedicated personnel within the sales department to handle customer feedback, including registering and processing visits, correspondence, and calls. The results of these processes shall be filed and archived.

b) For significant product quality issues or improvement suggestions raised by customers, the sales department shall complete a Quality Feedback Form and submit it to the relevant company departments. These departments must propose corrective measures within a specified timeframe. The business department will then communicate the results to the customers in a timely manner.
